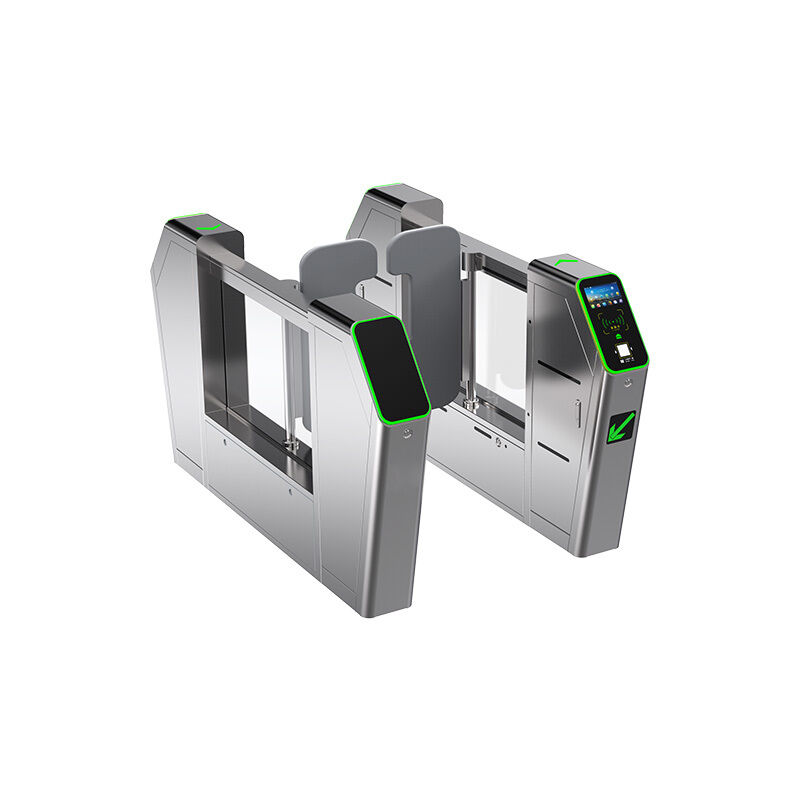

| نام تجاری: | Turboo |
| شماره مدل: | T3630 |
| مقدار تولیدی: | 1 عدد |
| قیمت: | negotiable |
| زمان تحویل: | 7-15 روز کاری |
| شرایط پرداخت: | L/C، T/T |
| Parameter | Specification |
|---|---|
| Size | 2100 × 220 × 1150 (mm) |
| Chassis | Top cover: 2mm SUS304 |
| Housing: 2mm SUS304 | |
| Filling Panel: 10mm transparent acrylic | |
| Movement | Mechanism: Servo direct driver swing gate movement |
| Door panel: PU arm | |
| Pass Lane: 600-900mm | |
| Electronic Control | Control board: Servo standard board + driver board + logic board |
| Motor: Servo direct drive brushless motor 200W | |
| IR sensor: 24 pairs | |
| Air switch: 2P | |
| Power Supply | 48V 450W |
| Accessories | Connection cable: 5m 2×1.0m² RVV |
| Network cable: 5m with crystal tips on both ends | |
| Package | Pearl cotton: Foam liner |
| Cardboard box: 2160 × 280 × 1210 |
|
| نام تجاری: | Turboo |
| شماره مدل: | T3630 |
| مقدار تولیدی: | 1 عدد |
| قیمت: | negotiable |
| جزئیات بسته بندی: | پکیج کیس چوبی |
| شرایط پرداخت: | L/C، T/T |
| Parameter | Specification |
|---|---|
| Size | 2100 × 220 × 1150 (mm) |
| Chassis | Top cover: 2mm SUS304 |
| Housing: 2mm SUS304 | |
| Filling Panel: 10mm transparent acrylic | |
| Movement | Mechanism: Servo direct driver swing gate movement |
| Door panel: PU arm | |
| Pass Lane: 600-900mm | |
| Electronic Control | Control board: Servo standard board + driver board + logic board |
| Motor: Servo direct drive brushless motor 200W | |
| IR sensor: 24 pairs | |
| Air switch: 2P | |
| Power Supply | 48V 450W |
| Accessories | Connection cable: 5m 2×1.0m² RVV |
| Network cable: 5m with crystal tips on both ends | |
| Package | Pearl cotton: Foam liner |
| Cardboard box: 2160 × 280 × 1210 |
